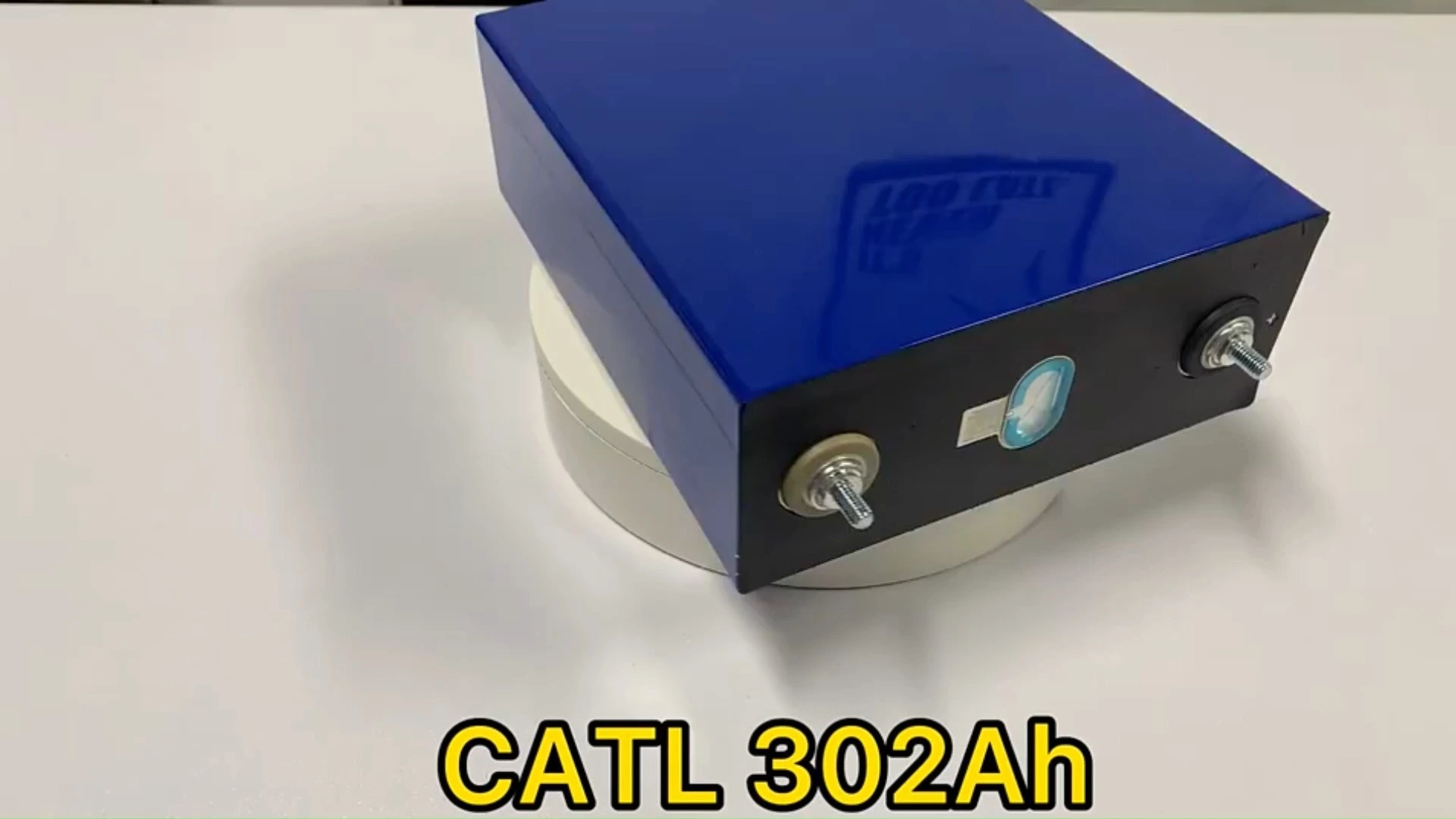

Grade A CATL 3.2V 302Ah Lifepo4 Battery Cells with QR Code for DIY 12V Battery with Bus Bars Power Storage System
★Grade A lifepo4 batteries★- 302Ah per cell,4/8/12/16 Pcs for each pack, high quality Lifepo4 3.2V battery cells with original CATL QR code.
★Long Lifetime★- Each lifepo4 battery cell is rated 302Ah capacity and with high consistency. batteries, these batteries offer nearly double the run time.
★New Inside Structure★- We start with new technology, utilizing an internal lamination structure, keeping batteries from bulging when it is full of power, and no leaking problem as well. Ensuring your safety and protection for daily use.
★For Many Applications★- Electric bicycle/motorcycle/scooter energy storage, solar power system, UPS electric appliances power supply, golf trolley/carts power tools.
★What You Get★- 4/8/12/16 Pcs CATL 302Ah Lifepo4 battery cells, bus bars, screws, our worry-free 5-year warranty, and our friendly customer service.
MANUFACTURER INTRODUCTION
We know the importance of maintaining the consistency of each cell in the battery pack, internal resistance, and voltage received by the customer are consistent
We will test all the battery Voltage and Internal resistance Voltage: The deviation less than 0.01V Resistance: The deviation less than 0.02mΩ.
[Size] Please allow measurement differences of 1-3cm/0.39-0.79in due to manual measurement.
[Color] Due to the difference in the computer monitor, the color of the product may be slightly different from the picture, please understand.
[Quality] All battery we provided are Grade A,Brand New with QR Code intact.
Specification
|
Item |
Parameter |
Remark |
|
|
Nominal Capacity |
302Ah |
25±2℃，1C，Fresh Cell |
|
|
Nominal Voltage |
3.2V |
||
|
Operating Voltage |
2.5~3.65V 2.0~3.65V |
T>0℃ T≤0℃ |
|
|
Internal Resistance |
0.18±0.05mΩ |
40%SOC, Fresh Cell |
|
|
Self discharge(monthly) |
≤3.5% |
||
|
Operating |
Charge |
0~65℃ |
|
|
Discharge |
-35~65℃ |
||
|
Weight |
≤5.51Kg |
||
|
Cycle Life |
≥4000cycles |
||
|
Standard Charge Current |
0.5C |
25±2℃ |
|
|
Max. Continuous Discharge Current
|
1C |
25±2℃ |
|
|
Dimension |
207.2*71.65*174mm |
|
|
