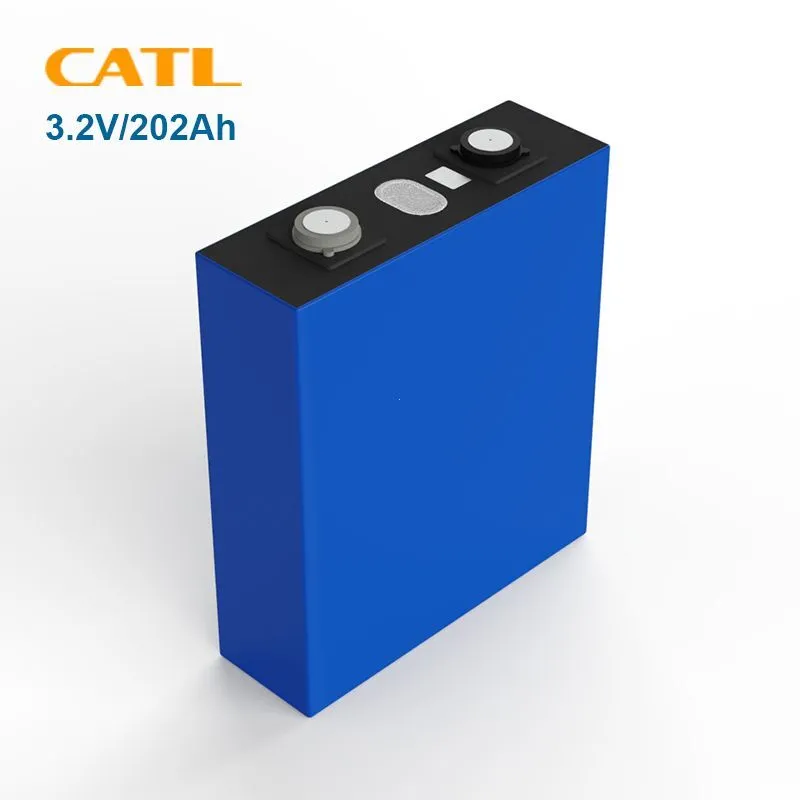

Lifepo4 CATL 3.2V 200-202Ah A Grade Battery 6000+ Cycle Life Rechargeable Cells For Solar Energy Storage RV EV
CATL 3.2V 202Ah Battery Application:
Engine Starting Battery
E-car, Golf trolley/car, E-bike, Scooter, RV, AGV, Marine, Tourist car, Caravan, Wheel chair, E-sweeper, Floor cleaner
Industrial vehicles: Forklift, Tractor, Loader
Marine: Yacht, electric boat, trolling motor
Backup Power: UPS, Telecom Base Station, Energy Storage System
Intellectual Robots
Power tools: electric drills, toys
EZ-GO Golf Cart
MANUFACTURER INTRODUCTION
The CATL 314Ah LiFePO4 battery cell is a high-capacity battery cell that is used for energy storage systems, it is a upgrade of CATL 280ah lifepo4 battery cells, and 314ah lifepo4 cell has 12% higher capacity than 280ah lifepo4 cell in the same dimensions, and the actual capacity is higher than 320ah; It is manufactured by Contemporary Amperex Technology Co. Limited (CATL), a Chinese battery manufacturer.
This battery cell has a capacity of 314Ah and a nominal voltage of 3.2V. It is designed to provide high energy density and long cycle life of more than 7000cycls@70%SOH. The battery cell is also known for its high safety performance and reliability.
The CATL 314Ah Prismatic LiFePO4 battery cell is commonly used in energy storage systems for residential, commercial, and industrial applications. It can be used in conjunction with other battery cells to create larger battery packs with higher capacities.
Specification
|
Item |
Parameters |
|
|
Nominal Capacity |
202Ah |
|
|
Minimum Capacity |
202 Ah |
|
|
Operating Voltage |
2.5~3.65V 2.0~3.65V |
|
|
Internal Resistance(1KHz) |
0.16±0.05mΩ |
|
|
Self-discharge Rate(monthly) |
≤3.5% |
|
|
Standard Charge/discharge Current |
0.5C |
|
|
Max. Continuous Charge/discharge Current |
1C |
|
|
Max. pulse discharge current (short pulse) |
3C |
|
|
Standard Charge Voltage |
3.65V |
|
|
Discharge Cut-off Voltage |
2.5V 2.0V |
|
|
Operating Temperature |
Charge |
0~+60℃ |
|
Discharge |
-30~+60℃ |
|
|
Storage Temperature |
≤1 month |
-20~+45℃ |
|
≥6 months |
-20~+35℃ |
|
|
Dimensions |
207.3*53.7*173.6mm |
|
|
Weight |
4.12Kg±10g |
|
