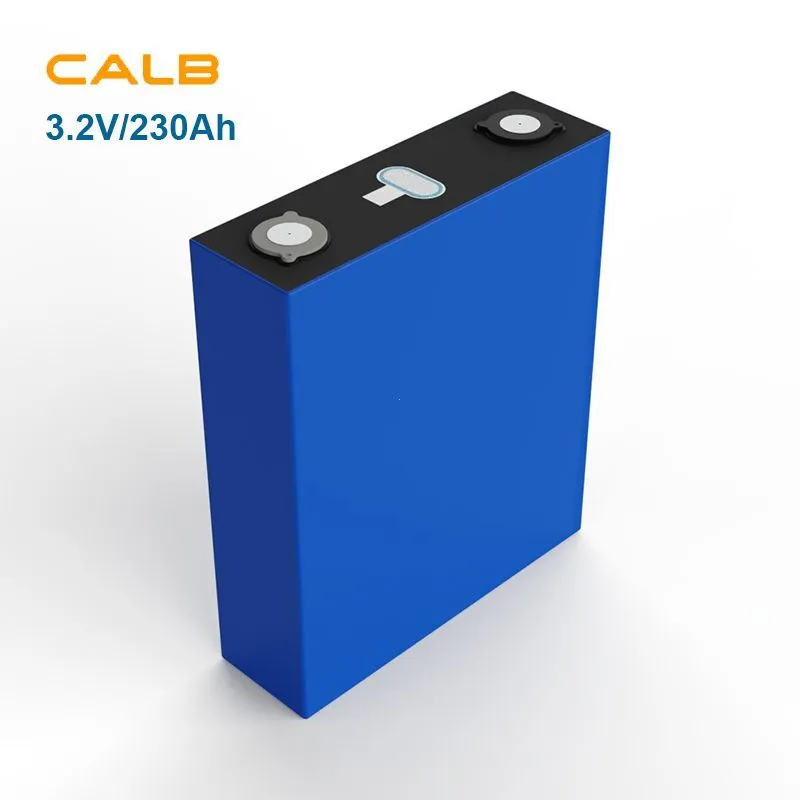

CALB L173F230 3.2V 230Ah lifepo4 Battery For Homestorage and Pack
CALB (China Aviation Lithium Battery) is a well known and respected manufactor of LiFePO4 cells,We can now supply three new models that were produced by CALB.
They are both high quality prismatic lithium ion batteries have the shell of aluminum,they have high-rate charging and discharging performance,high energy density, long cycle life and a wide working temperature range.CALB 68Ah 80Ah 176Ah 230Ah LiFePO4 Lithium Battery can be widely used in RV/solar system/ yacht/golf carts/ energy storage and solar system.
MANUFACTURER INTRODUCTION
CALB (China Aviation Lithium Battery) is a well known and respected manufactor of LiFePO4 cells,We can now supply three new models that were produced by CALB.
They are both high quality prismatic lithium ion batteries have the shell of aluminum,they have high-rate charging and discharging performance,high energy density, long cycle life and a wide working temperature range.CALB 68Ah 80Ah 176Ah 230Ah LiFePO4 Lithium Battery can be widely used in RV/solar system/ yacht/golf carts/ energy storage and solar system.
Specification
|
Parameter |
Specification |
|
Min capacity |
230 Ah |
|
Min Energy |
736Wh |
|
Nominal voltage |
3.2V |
|
Dimensions(L*W*H) |
173.4*53.7*207.2mm |
|
Weight |
4.17±0.16kg |
|
Internal Resistance |
≤0.5mΩ |
|
Charging Cut-off Voltage |
3.65V |
|
Discharging Cut-off Voltage |
2.5V (T＞0℃) 2.0V (T≤0℃) |
|
Standard Charging Current |
115A (0.5C) |
|
Standard Discharging Current |
230A （1C） |
|
Charging Temperature |
0~65℃ |
|
Discharging Temperature |
-35~65℃ |
|
Storage Temperature |
3 months0~45℃ 1month：-20~45℃ |
|
Cycling Performance |
4000 Cycles |
