CALB L135F72 3.2V 72AH lifepo4 Battery For Homestorage and Pack

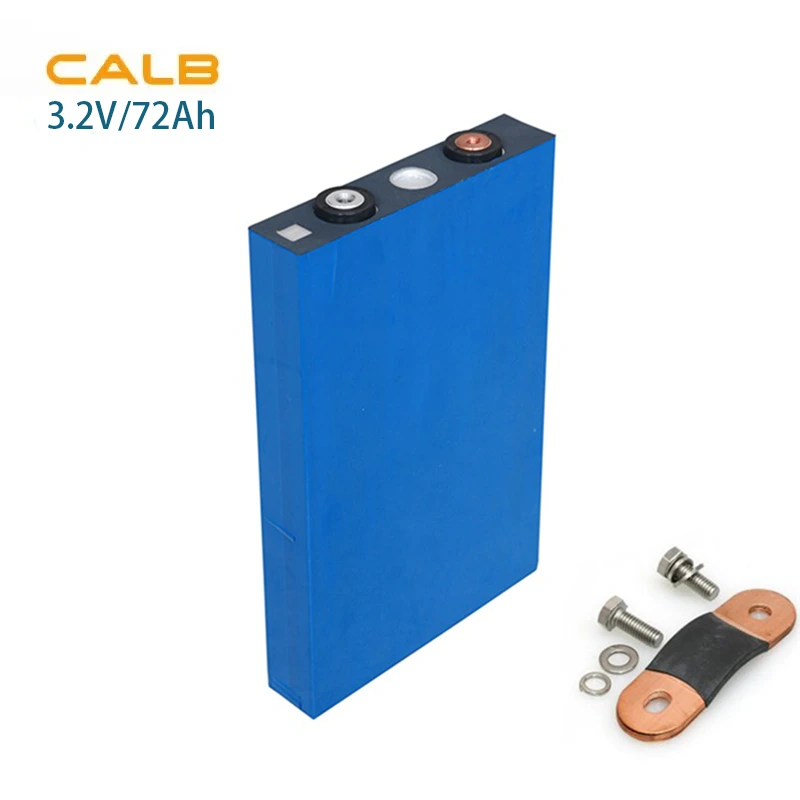

CAM72(135F72) battery cell is a 72Ah LiFePO4 battery cell produced by CALB from Luoyang, China. The brand new designed CAM72 with aluminum alloy shell is 40% smaller and 25% lighter than previous CA series cells.
Energy density of CAM72 cell is as much as 121wh/kg and the cycle life is more than 3,000 times. Qualified for RoHS &CCC with high safety, CAM72 is widely used in high speed electric vehicle, high power renewable energy integration, UPS and other power power applications.
MANUFACTURER INTRODUCTION
CALB (China Aviation Lithium Battery) is a well known and respected manufactor of LiFePO4 cells,We can now supply three new models that were produced by CALB.
They are both high quality prismatic lithium ion batteries have the shell of aluminum,they have high-rate charging and discharging performance,high energy density, long cycle life and a wide working temperature range.CALB 68Ah 80Ah 176Ah 230Ah LiFePO4 Lithium Battery can be widely used in RV/solar system/ yacht/golf carts/ energy storage and solar system.
Specification
|
Parameter |
Specification |
|
Capacity |
72Ah |
|
Work Voltage |
2.5~3.65V |
|
Weight |
1.78±0.1kg |
|
Internal Resistance（Ac. 1kHz） |
0.1~0.5mΩ |
|
Charging Time |
Standard Charge: ~4h Fast Charge: ~1h |
| Recommended SOC Window | SOC: 10%~90% |
| Max. Constant Discharging Current | 72A |
| Max. Constant Discharging Current（Long Pulse） | 144A (3min) |
| Maximum Pulse Discharging Current（Short Pulse） | 216A (30s) |
| Recommended SOC Window | 10%~90% |
|
Operating Temperature |
Charging: 0~45°C Discharging: -20~55°C |
| Shell Material | Aluminium |
|
Cycle Life |
≥4500 cycles |
