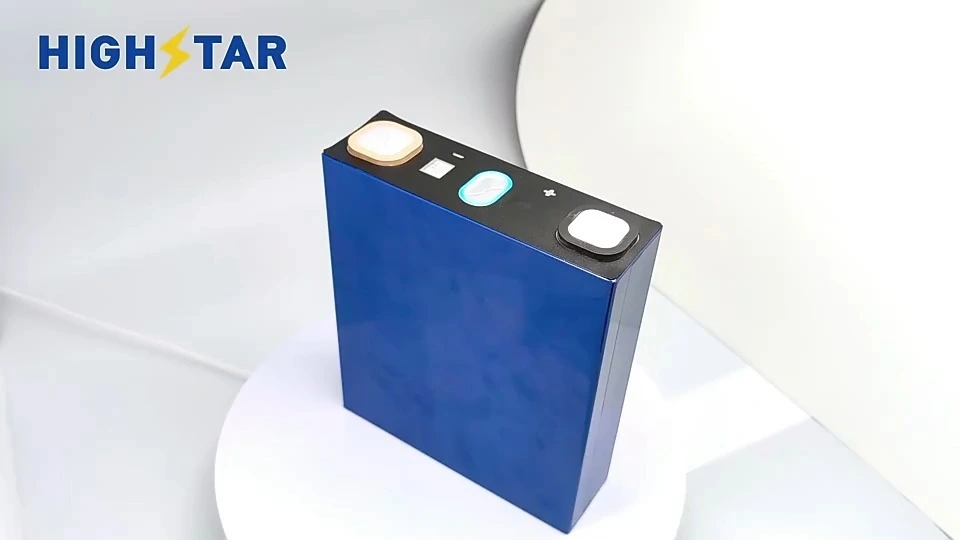

HIGHSTAR lifepo4 Prismatic Battery Cells 70Ah 3.2V Rechargeable Battery for High Power Application
|
NO.
|
Items
|
Specifications
|
|
1
|
Charge Voltage
|
3.65V
|
|
2
|
Nominal Voltage
|
3.2V
|
|
3
|
Nominal Capacity
|
203Ah
|
|
4
|
Standard Charging Current
|
0.5C
|
|
5
|
Max. Charge Current
|
1C
|
|
6
|
Discharge Cut-off Voltage
|
2.5V(0℃＜T≤60℃) 2.0V(-20℃≤T≤0℃)
|
|
7
|
Standard Discharging Current
|
0.5C
|
|
8
|
Max. Discharge Current
|
1C
|
|
9
|
Operating Temperature
Relative Humidity %
|
Charging：0℃~60℃, 65%±20%RH
|
|
Discharging：-30℃~60℃, 65%±20%RH
|
||
|
10
|
Recommended Storage Temperature
|
0℃~35℃
|
|
11
|
Cell Weight
|
5.42±0.3kg
|
|
12
|
Impedance
|
≤0.25mΩ
|
|
13
|
Cell Dimension（inclusive wrap foil）
|
Thickness：72.0mm±1.0mm
Width：173.7mm±0.5mm
Length：207.2mm±0.5mm
Center distance: 123.0±0.3mm
|
